Data, Fiber & CCTV Cabling
Markham.
One contractor for the network and the cameras. Cat6A structured cabling, OM4 and OS2 fiber backbone, IP camera and NVR installation, wireless access point cabling. Certified on every run.
Do you install data, fiber and CCTV cabling in Markham?
Yes. Velocity Cabling installs commercial data cabling, fiber optic backbone and CCTV camera cabling throughout Markham — Markham Centre, Unionville, Buttonville, Milliken Mills, Cornell, Armadale and the Woodbine and Highway 404 corridor. Commercial and industrial only. Free onsite survey within 48 hours.
Markham runs on technology tenants, life sciences, light manufacturing and distribution, and that mix shows up in the cabling. A software floor off Allstate Parkway needs AP density and riser fiber. A plant near Denison Street needs shielded copper routed clear of machinery. A distribution building off the 404 needs high-bay tray, long runs and fiber the moment copper hits its limit. We scope all three differently.
What we install across Markham
Network, fiber and security cabling scoped as one project, so you are not coordinating two trades around the same ceiling.
Data Cabling Markham
Structured Cat6 and Cat6A cabling for desks, wall plates, ceilings and equipment, terminated to patch panels in a proper rack. New fit-outs, floor expansions and re-cables of closets that grew without a plan.
Cat6A Structured Cabling
10GbE and PoE++ to 90W per port. What WiFi 6 and 6E access points, 4K cameras and PoE lighting need today. Shielded variants where the run passes plant equipment, VFDs or mechanical rooms.
Fiber Optic Cabling
OM4 and OM5 multimode for riser and floor-to-floor backbone. OS2 single-mode between buildings and across campus sites. On-site fusion splicing, LC and MPO termination, rack-mount enclosures.
CCTV & IP Camera Cabling
Cat6A home runs to every camera position, PoE budgeted per port, terminated and certified like any other run. Dome, bullet, multi-sensor and PTZ positions, interior and weather-sealed exterior.
NVR & Head-End Installation
NVR and VMS server mounting, rack placement, storage sizing against retention requirements, switch and PoE budget, monitor and workstation cabling. Handed over configured, labelled and documented.
Wireless Access Point Cabling
Cat6A drops to each AP position, mounted, terminated and certified. Where there is no wireless design yet we survey first, so AP count and placement come from measured coverage rather than the floor plan.

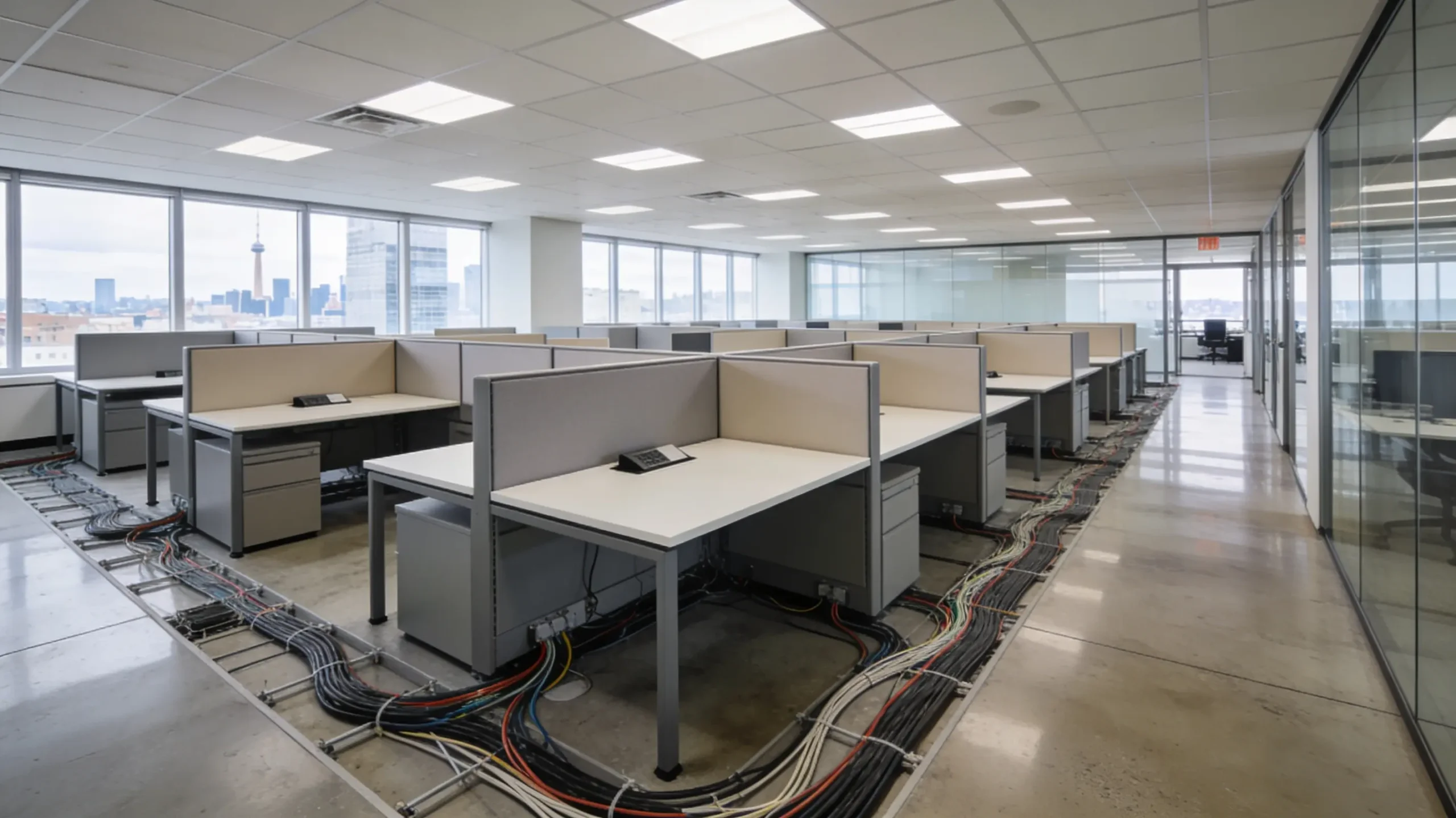

Office Cabling Markham
Open plan, private offices and boardrooms. Floor boxes, poke-throughs, wall plates, AV and display drops, meeting room connectivity. Staged floor by floor so the tenancy keeps operating.
Warehouse Cabling
High-bay cable tray, long horizontal runs, dock door and pick-station drops, AP cabling for scanner coverage, camera runs across aisles and yard. Built for forklift traffic and unheated bays.
Racks, Patch Panels & IDFs
Wall and floor cabinets, open racks, copper and fiber patch panels, vertical and horizontal managers, IDF and MDF builds. Includes re-terminating and documenting an existing closet that has drifted.
Which cable does your Markham site need?
Cat6 for desk drops and phones. Cat6A for access points and 4K cameras, because both now draw PoE++ and push past 1GbE. OM4 fiber for backbone between floors. OS2 fiber between buildings. Most Markham projects use Cat6A horizontally with OM4 in the riser.
| Cable | Carries | Specify it for | Distance |
|---|---|---|---|
| Cat6 | 1GbE / PoE | Desk drops, VoIP handsets, printers, card readers | 100 m |
| Cat6A | 10GbE / PoE++ 90W | WiFi 6 & 6E access points, 4K and multi-sensor cameras | 100 m |
| Cat6A STP | 10GbE shielded | Plant floors, near VFDs, motors and welding cells | 100 m |
| OM4 | 100GbE | Riser backbone, floor-to-floor, IDF to MDF | 100 m @ 100G |
| OM5 | 400GbE | High-density backbone, future switching headroom | 150 m @ 400G |
| OS2 | Effectively unlimited | Building to building, campus links, long yard runs | 10 km+ |
Deeper detail on the Cat6A cabling, fiber optic cabling and data centre cabling pages.
Running the network and the cameras together
IP cameras use the same Cat6A and PoE infrastructure as your data network. Cabling both scopes in one project means one set of pulls, one tray system, one patch panel build and one set of test results — instead of two trades working around each other in the same ceiling.
The split-trade version is where most of the waste happens. A cabling contractor finishes and leaves. Weeks later a security integrator arrives, finds the tray full, runs camera cable surface-mounted along a different path, and terminates into a second patch panel nobody labelled. Now there are two documentation sets, two warranties and two people to call when a port goes down.
- One PoE budget. Cameras, access points and phones sized against one switch plan rather than discovered later.
- One pathway. Tray and conduit sized once for the total cable count, with fill headroom left for the next addition.
- One test report. Camera runs certified to the same TIA-568 limits as data runs, in the same document.
- One warranty. If a camera port fails, there is no argument about whose cable it is.
| Camera type | Cable | PoE class | Typical placement |
|---|---|---|---|
| Fixed dome 4MP | Cat6 | 802.3af (15W) | Corridors, reception, interior general coverage |
| Fixed bullet 4K | Cat6A | 802.3at (30W) | Entrances, dock doors, parking approaches |
| Multi-sensor 180/360 | Cat6A | 802.3bt (60W) | Warehouse aisles, open floors, yard corners |
| PTZ with heater | Cat6A | 802.3bt (90W) | Exterior perimeter, yard, large lot coverage |
| ANPR / LPR | Cat6A | 802.3at (30W) | Gates, loading entrances, vehicle chokepoints |
Exterior and yard coverage is covered in more depth on our warehouse CCTV and business CCTV pages.
Where we work in Markham
Crews are in York Region most days. Each part of Markham brings a different job, and the scope changes with it.
Also covering Thornhill, Richmond Hill, Stouffville, Scarborough and the wider York Region. Call if your site is outside this list.
Free Markham site survey, fixed written price.
Tell us the site and roughly what you need. We look at it in person, then send an itemised quote. We do not price cabling or camera work over the phone.
- Survey booked within 48 hours
- Itemised written quote, fixed price
- Fluke DSX results and OTDR traces at handover
- Network and CCTV scoped as one project
- Evening and weekend work available
Markham cabling questions
Cabling and CCTV quote for your Markham site.
Survey booked in 48 hours. Fixed written price. Certified results at handover.
